Designed for space-restricted applications, our Electric Scissor Lifts deliver quality and durability while improving productivity.
Consult a Noble ExpertOur XEN series is equipped with an efficient drive system that offers unmatched productivity. This type of scissor lifts makes it easy for users to maneuver in tight spaces. Moreover, the XEN series boasts quiet electric operations, making it the perfect material handling equipment for indoor and outdoor applications.
230 – 430 KG
0 – 13,700 mm
Lead Acid Battery

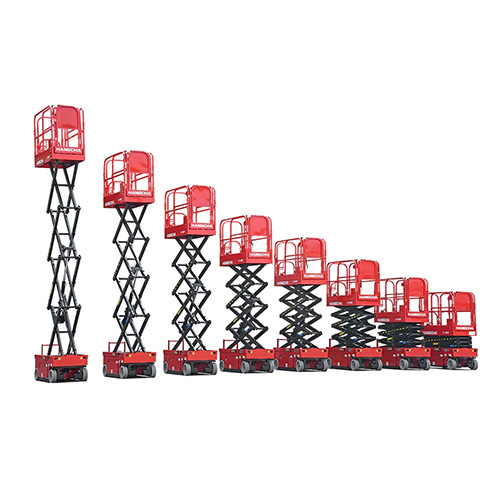

Hangcha’s Self-propelled Electric Scissor Lifts are the ideal material handling equipment for maneuvering through narrow-aisles and tight spaces. It is the perfect lift for indoor and outdoor applications. It functions: lifting, lowering, steering, forward and backward, all under operator’s control.
Our scissor lifts are put together in such a way that maintenance, such as opening the battery cover, is made easily accessible. The scissor lifts are manufactured in consideration of noise level and impact on operations.
Model: 65XEN
Working Height: 6.5 m / 255.9 in
Platform Height: 4.50 m / 177.2 in
Overall Length: 1.89 m / 74.4 in
Overall Width: 0.81 m / 31.9 in
Overall Height: 2.07 m / 81.5 in
Turning Radius Inside: 0.016 m / 0.63 in
Turning Radius Outside: 1.64 m / 64.6 in
Travel Speed: 0-3.5(0-2.17)
Inquire Now

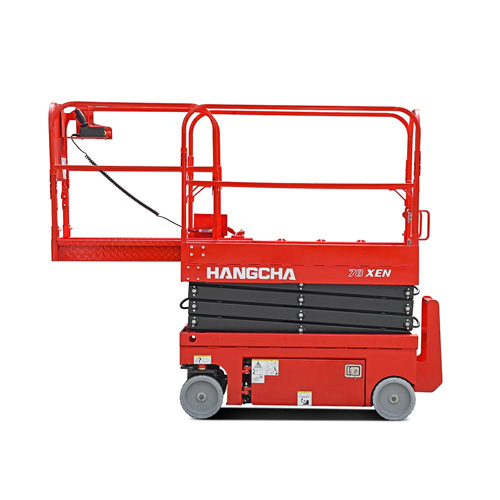

Model: 78XEN
Working Height: 7.8 m / 307.1 in
Platform Height: 5.8 m / 228.3 in
Overall Length: 1.89 m / 74.4 in
Overall Width: 0.81 m / 31.9 in
Overall Height: 2.19 m / 86.2 in
Turning Radius Inside: 0.016 m / 0.63 in
Turning Radius Outside: 1.64 m / 64.6 in
Travel Speed: 0-3.5(0-2.17)
Inquire Now
Model: 80XENS
Working Height: 8 m / 315.0 in
Platform Height: 6 m / 236.2 in
Overall Length: 2.48 m / 97.6 in
Overall Width: 0.82 m / 31.9 in
Overall Height: 2.23 m / 86.6 in
Turning Radius Inside: 0.02 m / 0.8 in
Turning Radius Outside: 2.1 m / 82.7 in
Travel Speed: 0-3.5(0-2.17)
Inquire Now
Model: 100XENS
Working Height: 10 m / 393.7 in
Platform Height: 8 m / 315.0 in
Overall Length: 2.48 m / 97.6 in
Overall Width: 0.82 m / 31.9 in
Overall Height: 2.23 m / 86.6 in
Turning Radius Inside: 0.02 m / 0.8 in
Turning Radius Outside: 2.1 m / 82.7 in
Travel Speed: 0-3.5(0-2.17)
Inquire Now
Model: 80XEN
Working Height: 8 m / 315.0 in
Platform Height: 6 m / 236.2 in
Overall Length: 2.48 m / 97.6 in
Overall Width: 1.15 m / 45.3 in
Overall Height: 2.23 m / 86.6 in
Turning Radius Inside: 0.02 m / 0.8 in
Turning Radius Outside: 2.20 m / 86.6 in
Travel Speed: 0-3.5(0-2.17)
Inquire Now

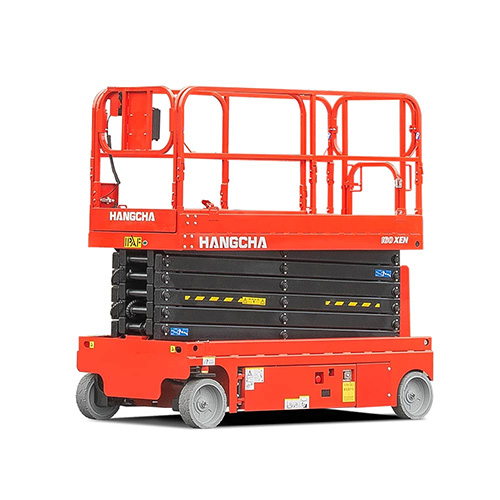

Model: 100XEN
Working Height: 10 m / 393.7 in
Platform Height: 8 m / 315.0 in
Overall Length: 2.48 m / 97.6 in
Overall Width: 1.15 m / 45.3 in
Overall Height: 2.23 m / 91.3 in
Turning Radius Inside: 0.02 m / 0.8 in
Turning Radius Outside: 2.20 m / 86.6 in
Travel Speed: 0-3.5(0-2.17)
Inquire Now
Model: 120XEN
Working Height: 12 m / 472.4 in
Platform Height: 10 m / 393.7 in
Overall Length: 2.48 m / 97.6 in
Overall Width: 1.15 m / 45.3 in
Overall Height: 2.50 m / 96.5 in
Turning Radius Inside: 0.02 m / 0.8 in
Turning Radius Outside: 2.20 m / 86.6 in
Travel Speed: 0-3.5(0-2.17)
Inquire Now
Model: 140XEN
Working Height: 13.8 m / 534.3 in
Platform Height: 11.8 m / 464.6 in
Overall Length: 2.48 m / 97.6 in
Overall Width: 1.15 m / 45.3 in
Overall Height: 2.65 m / 102.0 in
Turning Radius Inside: 0.02 m / 0.8 in
Turning Radius Outside: 2.20 m / 86.6 in
Travel Speed: 0-3.5(0-2.17)
Inquire NowOur scissor lifts can be used throughout a variety of settings but we recommend these for operation in the following applications:
Engineered better than prior models made, the self-propelled electric scissor lifts that we offer are your perfect material handling equipment for modern industry-related operations.
